CPR-007DA

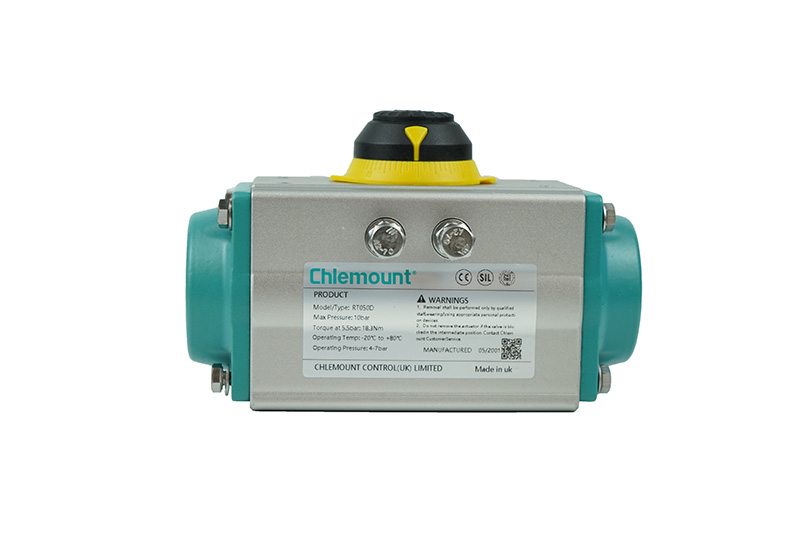

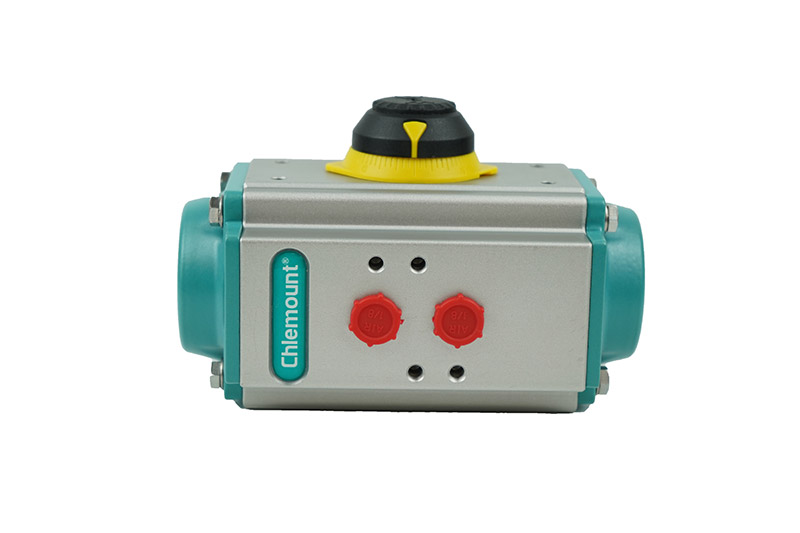

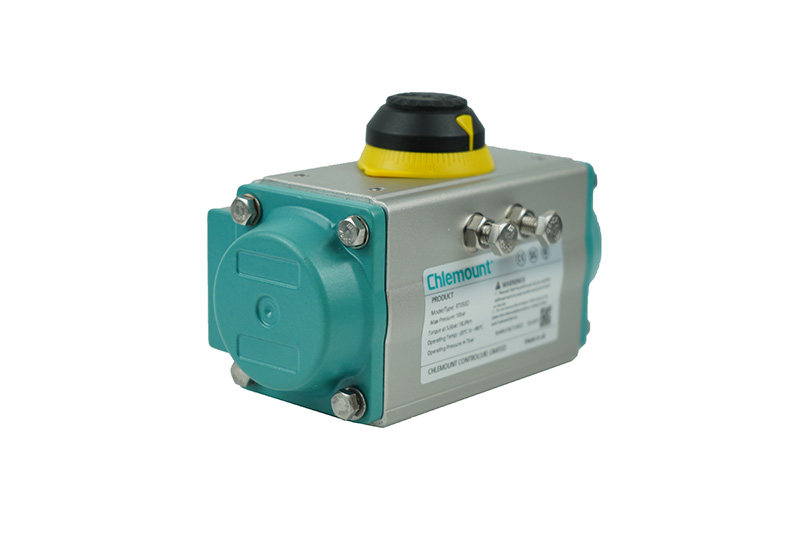

PR Range single- and double-acting pneumatic piston actuators.
Features
PR Range single- and double-acting pneumatic piston actuators.
Specifications
PR Range single- and double-acting pneumatic piston actuators.
Design Single- and double-acting pneumatic piston actuators (rack and pinion) Torques 3.8 to 13,000 Nm (115,060 lbf.in) Air pressure 2.5 to 8 bar | Action Standard 90°, optional 120°, 180° Supply Filtered air PNEUROP/ISO class 4, other fluids on request | Stroke adjustment -4° to +4° from 90° position Single and double end stop options Materials Extruded aluminium body with cast aluminium end capsoptional surface treatment available Corrosion resistant cylinders and nickel-plated pinion |
Approvals and Industry Standards
Certified to ATEX 2014/34/EU
Certified suitable for use at SIL3 as a single device in accordance with IEC 61508
Mechanical interfaces to ISO 5211, EN 15714-3-4, NAMUR VDI / VDE 3845
Document download
Product Brochure
PR Range Sales Brochure
Manuals
PR Range installation and maintenance manual.pdf
PR Range 3D/CAD Models
